How Matrix develops a friction-reducer formulation

By Matrix TollFormulation · 5 min read
Polymer chains and formulation architectureA conceptual branched polymer chain. Connected clusters represent formulation architecture; the illustration is not a molecular model of a specific product.

A friction reducer is a formulation decision before it is a product selection. Water chemistry, polymer architecture, handling and the rest of the treatment package determine what needs to be evaluated.

Start with the operating question.

The useful first question is not which friction reducer is strongest. It is what the fluid must do under the conditions of the job. Define the water source, the expected blend, pumping conditions, time available for hydration and the other chemicals that will enter the system. The same product can be evaluated very differently when those conditions change.

Matrix develops friction-reducer formulations through molecular weight, polymer charge, monomer ratio and microstructure. These are connected variables. They influence how a polymer interacts with water, moves in a flowing system and responds to other ingredients. A formulation brief links those choices to an operating objective instead of treating one property as a universal measure of quality.

Water is an input to the formulation.

A representative water analysis gives the evaluation a starting point. Total dissolved solids describe part of the water profile, but a single TDS value does not describe every relevant constituent. Hardness, iron, the source-water blend and changes during the program can all be relevant to the comparison.

Record which water was sampled and when. If the field will alternate between sources or vary the blend ratio, the evaluation should address that expected range. Testing only a convenient freshwater sample leaves a different question unanswered: how the formulation will behave in the water actually used on location. The purpose is to define a credible test envelope, not to imply that every possible water variation has been covered.

Chemistry

Friction-reducer formulation

Water, polymer design and the complete additive package shape the selection.

01

Water & conditions

Water source and blend, salinity, hardness and iron, plus flow and hydration time.

02

Polymer design

Molecular weight, charge and monomer balance, and chain architecture.

03

Chemical package

Other additives and residuals, concentration and sequence, and handling and supply format.

Evaluate together

Friction response · Hydration · Compatibility · Formation interaction

Three formulation choices work together.

Molecular weight concerns the size of the polymer chains. Charge type and charge density concern how the polymer interacts with dissolved species, surfaces and other additives. Monomer balance and chain architecture add further formulation choices. Linear, branched and network structures behave differently; a polymer cannot be described fully by a single label.

Changing a formulation variable can affect more than one response. A material that gives a useful friction response still needs to hydrate in the available time and remain compatible with the intended package. A formulation with a formation-facing objective needs additional evidence beyond surface-flow behavior.

Anionic and cationic are starting points.

Matrix A Series includes anionic grades A15, A19, A20 and A55. Matrix C Series includes cationic grades C30, C40 and C50, with clay-interaction requirements evaluated alongside friction reduction. Select the grade against the actual water profile and treatment conditions.

Charge type alone does not establish brine suitability. Grade, concentration and the complete formulation matter. The selection question is which candidate meets the agreed conditions, including any clay-interaction requirements, without introducing unacceptable interactions elsewhere in the package.

The additive package is part of the formulation.

Surfactants and supporting ingredients influence how a formulation is prepared and introduced. The relevant comparison is the complete product in the intended water, followed by the complete chemical package. Scale inhibitors, biocides, surfactants and residual chemicals already present in recycled water can all belong in that review.

Use the intended concentrations and addition sequence. A favorable result with an isolated FR does not demonstrate compatibility after the other chemicals are added. Likewise, a clear jar alone does not establish friction performance. Each observation should answer a defined question, and the test record should say which ingredients and conditions were represented.

Read a friction-loop result in context.

A friction-loop comparison needs a stated baseline, test fluid, concentration, flow condition and timing. Hydration and the development of the response can matter as much as a peak value. If conditions differ between candidates, the result may answer a different question from the one the reader assumes.

The formulation review should identify both the useful response and the practical limits of the evidence. Surface friction reduction is not a direct measurement of formation compatibility, regained conductivity or future production. Those questions require their own evidence. Keeping the distinctions visible makes the laboratory result more useful when the program moves into manufacturing and field planning.

Carry the selected formulation into the batch brief.

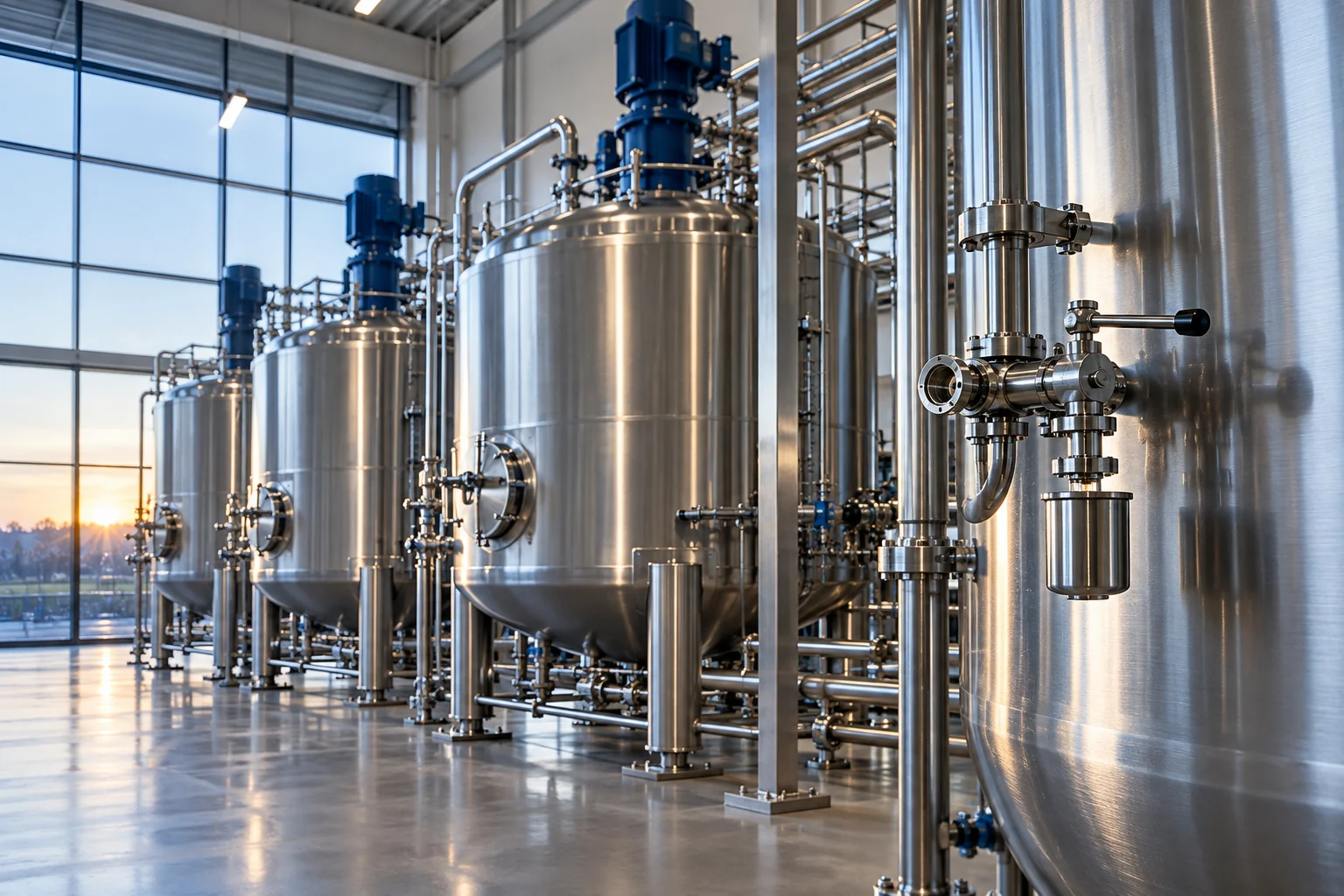

After evaluation, the formulation still has to become a product that can be manufactured, handled and supplied. Matrix connects this step with its Midland and Weston facilities. The brief should identify the selected formulation, agreed batch requirements, packaging, required documents and the receiving conditions.

Expected consumption and delivery timing connect the laboratory decision with inventory and logistics. If the water source or treatment package changes, that information should return to the formulation review. Repeating the same product name without carrying forward the conditions behind its selection can disconnect supply from the technical decision.

Compare the records, not just the headline.

A useful candidate comparison keeps the same information beside every result: formulation identity, water sample, concentration, flow condition and time. Note any preparation differences. If one product is given a different hydration period or a different water blend, that difference belongs in the interpretation rather than disappearing into a single ranked score.

Record practical observations as well as the primary response. Handling format, mixing needs and the time available at the point of addition can affect whether a technically promising candidate fits the planned operation. Those observations do not replace a measurement, but they explain the context in which the measurement will be used.

The result of this review may be a selected candidate, a revised formulation or a decision to investigate another condition. Each is a useful outcome when the next step is explicit. It is less useful to describe a product as universally superior when the evidence actually supports one defined comparison. Matrix's formulation-to-field approach is strongest when the conditions and limits remain visible all the way to the production and application brief.

Build a useful first inquiry.

Bring the water analysis, representative samples, pumping conditions and the full chemical list. Include the current FR, its concentration, the response you observe and the change you want to investigate. Add expected quantities, the delivery location and the timing of the program.

That information allows Matrix to scope a comparison around the actual application. The outcome is a defined path from operating question to candidate evaluation, formulation, manufacturing and field use. It is also a clear record of what remains to be evaluated when the conditions change.
